Model Number |
Capacity tonnes |
Oil Capacity cm3 |
Hexagon AF Sizes |
Stud Bolt Thread Sizes |
Weight kg |
||
|
mm |
inch |
metric |
imperial |
||||
|
DNS404 |
119.6 |
796 |
75 - 105 |
2 15/16" - 4 1/4" |
M48 - M72 |
1 7/8" - 2 3/4" |
50 |
|
DNS506 |
203.4 |
1510 |
105 - 136 |
4 1/4" - 5 3/8" |
M72 - M95 |
2 3/4" - 3 1/2" |
96 |
Note: DNS nut splitters are for use on heavy duty nuts, where the nut height is equal to or greater than two-thirds of the blade length of the tool being used.
|

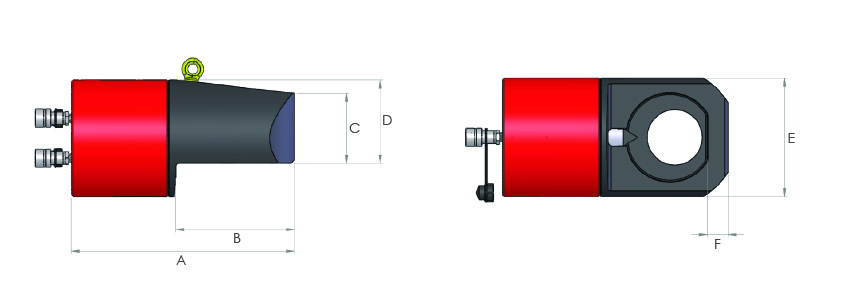

Model Number |
Dimensions in mm |
|||||
|
A |
B |
C |
D |
E |
F |
|
|
DNS404 |
379.5 |
192 |
99.5 |
130.5 |
183 |
34 |
|
DNS506 |
451 |
240 |
140 |
167.5 |
235 |
41 |
Note: Please check dimension 'F' to confirm the tool will fit in the space between the edge of the nut and the neck of the flange.
