Model Number |
Capacity tonnes |
Stroke mm |
Oil cap. cm3 |
Cyl. eff. area cm2 |
Weight kg |
|
HPC106 |
10 |
152 |
228 |
15.0 |
12.0 |
|
HPC106C |
10 |
152 |
228 |
15.0 |
15.5 |
|
HPC306 |
30 |
152 |
636 |
41.8 |
31.0 |
|
HPC506 |
50 |
152 |
1078 |
71.0 |
54.0 |
|

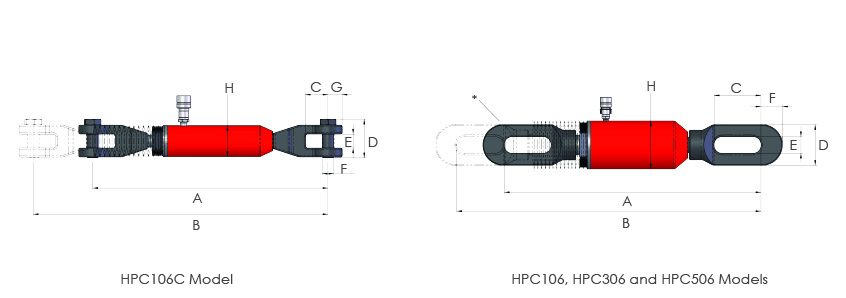

Model Number |
Dimensions in mm |
|||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
|
|
HPC106 |
600 |
752 |
114 |
67 |
32 |
33 |
- |
80 |
|
HPC106C |
602 |
754 |
58 |
99 |
35 |
30 |
36 |
80 |
|
HPC306 |
695 |
847 |
145 |
105 |
42 |
50 |
- |
122 |
|
HPC506 |
819 |
971 |
149 |
130 |
52 |
69 |
- |
153 |
