Model Number |
Capacity Tonnes |
Stroke mm |
Oil Cap. cm³ |
Cyl. Eff. Area cm² |
Weight Kg |
|
HHA182 |
18 |
51 |
129 |
25.2 |
3.6 |
|
HHA372 |
37 |
51 |
266 |
52.1 |
7.2 |
|
HHA504 |
52 |
105 |
765 |
72.8 |
13.4 |
|

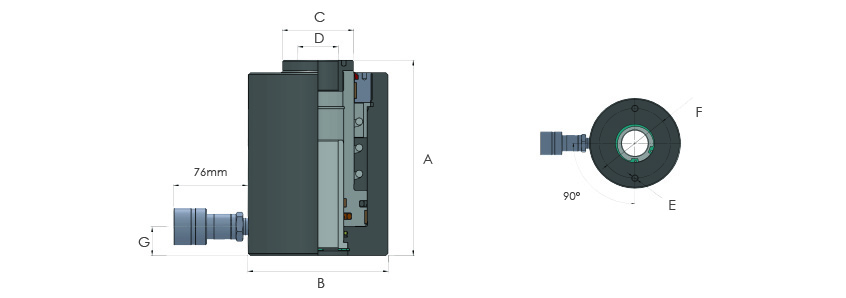

Model Number |
Dimensions in mm |
||||||
|
A |
B |
C |
D |
E |
F |
G |
|
|
HHA182 |
175 |
98 |
45 |
26 |
M8x10 |
66.0 |
26 |
|
HHA372 |
193 |
136 |
69 |
39 |
M10x15 |
105.0 |
32 |
|
HHA504 |
280 |
160 |
79 |
51 |
M10x15 |
130.2 |
39 |
