Model Number |
Capacity Tonnes |
Stroke mm |
Oil Cap. litres |
Cylinder Eff. Area cm2 |
Weight Kg |
Tommy Bar |
|
HFG502 |
50 |
51 |
0.36 |
71.3 |
16.2 |
TTB10 |
|
HFG504 |
50 |
102 |
0.73 |
71.3 |
20.6 |
TTB10 |
|
HFG506 |
50 |
150 |
1.07 |
71.3 |
25.0 |
TTB10 |
|
HFG1002 |
109 |
51 |
0.76 |
153.4 |
35.0 |
TTB10 |
|
HFG1004 |
109 |
100 |
1.53 |
153.4 |
50.3 |
TTB10 |
|
HFG1006 |
109 |
150 |
2.3 |
153.4 |
65.4 |
TTB10 |
|
HFG1502 |
152 |
51 |
1.07 |
214.3 |
78.0 |
TTB10 |
|
HFG1504 |
152 |
100 |
2.14 |
214.3 |
84.0 |
TTB10 |
|
HFG1506 |
152 |
150 |
3.21 |
214.3 |
89.5 |
TTB10 |
|
HFG2002 |
203 |
50 |
1.42 |
285.1 |
95.4 |
TTB14 |
|
HFG2006 |
203 |
152 |
4.33 |
285.1 |
137.0 |
TTB14 |
|
HFG2506 |
256 |
152 |
5.5 |
366.5 |
171.0 |
TTB14 |
|
HFG3006 |
326 |
150 |
6.87 |
457.7 |
228.5 |
TTB14 |
|
HFG4006 |
398 |
151 |
8.44 |
559 |
308.5 |
TTB14 |
|
HFG5006 |
520 |
152 |
11.1 |
729.9 |
457.0 |
TTB16 |
|
HFG8006 |
809 |
152 |
17.47 |
1134.1 |
735.0 |
TTB16 |
|
HFG10006 |
1012 |
152 |
21.61 |
1419.3 |
1016.0 |
TTB20 |
|

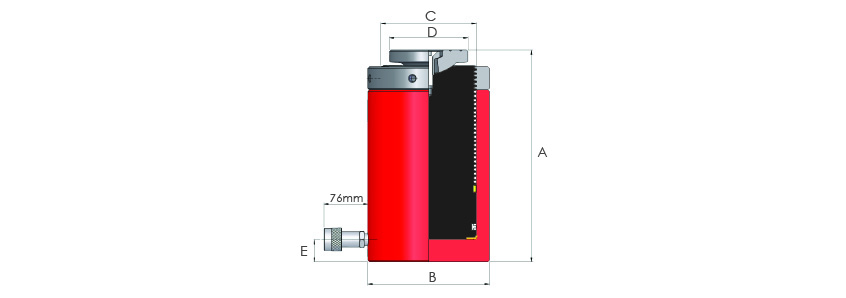

Model Number |
Dimensions in mm |
||||
|
A |
B |
C |
D |
E |
|
|
HFG502 |
173 |
127 |
95 |
70 |
25 |
|
HFG504 |
224 |
127 |
95 |
70 |
25 |
|
HFG506 |
272 |
127 |
95 |
70 |
25 |
|
HFG1002 |
189 |
185 |
140 |
115 |
27.5 |
|
HFG1004 |
240 |
185 |
140 |
115 |
27.5 |
|
HFG1006 |
311 |
185 |
140 |
115 |
27.5 |
|
HFG1502 |
237 |
216 |
165 |
135 |
42 |
|
HFG1504 |
288 |
216 |
165 |
135 |
42 |
|
HFG1506 |
338 |
216 |
165 |
135 |
42 |
|
HFG2002 |
261 |
254 |
190 |
135 |
50 |
|
HFG2006 |
362 |
254 |
190 |
135 |
50 |
|
HFG2506 |
401 |
273 |
216 |
150 |
50 |
|
HFG3006 |
417 |
310 |
241 |
150 |
50 |
|
HFG4006 |
459 |
360 |
267 |
180 |
70 |
|
HFG5006 |
498 |
400 |
305 |
180 |
80 |
|
HFG8006 |
565 |
480 |
380 |
340 |
80 |
|
HFG10006 |
620 |
540 |
425 |
380 |
90 |
