Model Number |
Capacity Tonnes |
Stroke mm |
Oil Cap. Litres |
Cyl. Eff. Area cm2 |
Weight Kg |
|
|
|
Push |
Pull |
|
|
|
|
|
HDA256 |
25 |
10 |
152 |
0.53 |
34.9 |
15.0 |
|
HDA506 |
50 |
15 |
152 |
1.08 |
71.3 |
28.4 |
|
HDA5013 |
50 |
15 |
330 |
2.35 |
71.3 |
42.6 |
|
HDA5020 |
50 |
15 |
508 |
3.62 |
71.3 |
62.8 |
|
HDA1006 |
109 |
36 |
152 |
2.33 |
153.3 |
64.5 |
|
HDA10013 |
109 |
36 |
330 |
5.06 |
153.3 |
89.0 |
|
HDA1506 |
152 |
79 |
152 |
3.26 |
214.2 |
90.0 |
|
HDA15012 |
152 |
79 |
305 |
6.53 |
214.2 |
120.5 |
|
HDA2006 |
203 |
94 |
152 |
4.33 |
285.2 |
129.8 |
|
HDA20012 |
203 |
94 |
305 |
8.69 |
285.2 |
167.4 |
|
HDA3006 |
326 |
- |
152 |
6.95 |
457.4 |
193.0 |
|
HDA30012 |
326 |
- |
305 |
13.95 |
457.4 |
250.0 |
|
HDA4006 |
398 |
- |
152 |
8.49 |
558.9 |
286.0 |
|
HDA5006 |
520 |
- |
152 |
11.09 |
729.9 |
372.0 |
|
HDA8006 |
809 |
- |
152 |
17.28 |
1134.1 |
650.0 |
|
HDA10006 |
1012 |
- |
152 |
21.62 |
1419.3 |
900.0 |
|

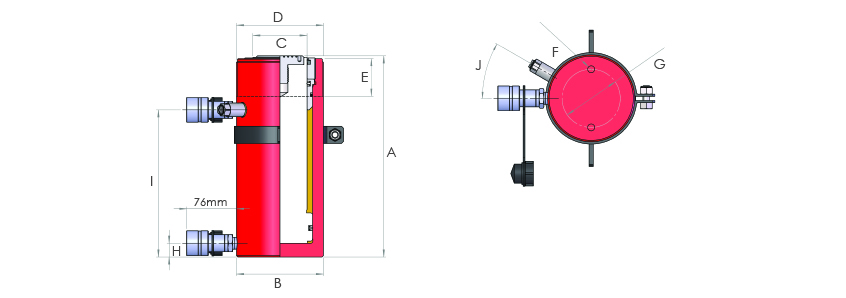

Model Number |
Dimensions in mm |
|||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
|
|
HDA256 |
287 |
92 |
50 |
3 5/16"-12un |
53 |
M10 |
60 |
30 |
212 |
40° |
|
HDA506 |
295 |
127 |
79 |
5"-12un |
55 |
M12 |
85 |
20 |
216 |
30° |
|
HDA5013 |
473 |
127 |
79 |
5"-12un |
55 |
M12 |
85 |
20 |
394 |
30° |
|
HDA5020 |
730 |
127 |
79 |
5"-12un |
55 |
M12 |
85 |
68 |
636 |
30° |
|
HDA1006 |
304 |
185 |
114 |
6 7/8"-12un |
51 |
M12 |
146 |
30 |
226 |
30° |
|
HDA10013 |
482 |
185 |
114 |
6 7/8"-12un |
51 |
M12 |
146 |
30 |
404 |
30° |
|
HDA1506 |
310 |
210 |
114 |
8"-12un |
55 |
M16 |
160 |
35 |
231 |
30° |
|
HDA15012 |
463 |
210 |
114 |
8"-12un |
55 |
M16 |
160 |
35 |
384 |
30° |
|
HDA2006 |
327 |
254 |
140 |
9 3/4"-12un |
65 |
M20 |
185 |
43 |
238 |
30° |
|
HDA20012 |
480 |
254 |
140 |
9 3/4"-12un |
65 |
M20 |
185 |
43 |
391 |
30° |
|
HDA3006 |
409 |
312 |
165 |
optional |
optional |
M20 |
158 |
50 |
262 |
30° |
|
HDA30012 |
562 |
312 |
165 |
optional |
optional |
M20 |
158 |
50 |
415 |
30° |
|
HDA4006 |
431 |
360 |
216 |
optional |
optional |
M24 |
203 |
55 |
277 |
30° |
|
HDA5006 |
470 |
397 |
203 |
optional |
optional |
M24 |
203 |
65 |
300 |
30° |
|
HDA8006 |
535 |
500 |
300 |
optional |
optional |
optional |
optional |
70 |
318 |
30° |
|
HDA10006 |
590 |
540 |
320 |
optional |
optional |
optional |
optional |
99 |
357 |
30° |
