Model Number |
Square Drive Size |
Bolt Capacity |
Free Speed |
Max Torque |
Recommended Torque |
Air Consumption |
Weight kg |
|||||
|
mm |
inch |
R.P.M. |
I.P.M. |
Nm |
lbf.ft |
Nm |
lbf.ft |
m3/min |
cfm |
|||
|
Pistol grip versions |
||||||||||||
|
IW13P |
1/2" |
16 |
5/8" |
6300 |
1200 |
450 |
300 |
90-350 |
65-260 |
0.35 |
12.5 |
2.8 |
|
IW19P |
3/4" |
22 |
7/8" |
3800 |
1100 |
870 |
640 |
250-800 |
185-590 |
0.60 |
21.4 |
6.2 |
|
Back handle grip versions |
||||||||||||
|
IW25B |
1" |
45 |
1 3/4" |
3700 |
700 |
2700 |
1980 |
1000-2450 |
740-1772 |
0.75 |
26.7 |
10.7 |
|
IW38B |
1 1/2" |
50 |
2" |
3000 |
600 |
3500 |
2600 |
1000-3200 |
740-2370 |
0.82 |
29.2 |
16.0 |
Note: Performance figures are at 0.62 MPA (Pe) (90 psi) air pressure
|

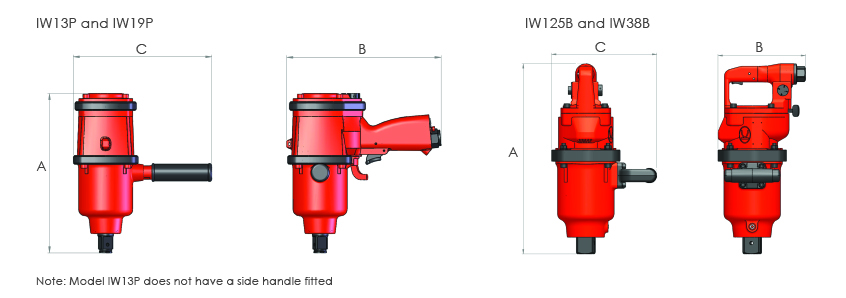

Model Number |
Dimensions in mm |
||
|
A |
B |
C |
|
|
IW13P |
198 |
222 |
78 |
|
IW19P |
252 |
245 |
220 |
|
IW25B |
358 |
194 |
211 |
|
IW38B |
409 |
189 |
227 |
