Model Number |
Capacity Tonnes |
Power Supply |
Stroke mm |
Weight kg |
Max Additional Stack mm |
|
TL050A255 |
50 |
6-bar air driven |
254 |
160 |
680 |
|
TL050E255 |
50 |
240V electric |
254 |
168 |
680 |
|
TLA10016 |
100 |
6-bar air driven |
405 |
289 |
480 |
|
TLA10021 |
100 |
6-bar air driven |
530 |
319 |
180 |
|
TLA15015 |
150 |
6-bar air driven |
390 |
313 |
485 |
|
TLA15020 |
150 |
6-bar air driven |
520 |
349 |
180 |
|
TLA20015 |
200 |
6-bar air driven |
381 |
373 |
500 |
|
TLA20027 |
200 |
6-bar air driven |
685 |
453 |
180 |
Note: 100, 150 and 200 tonne electric driven Hi-Force ToughLift jacking systems available on request
|

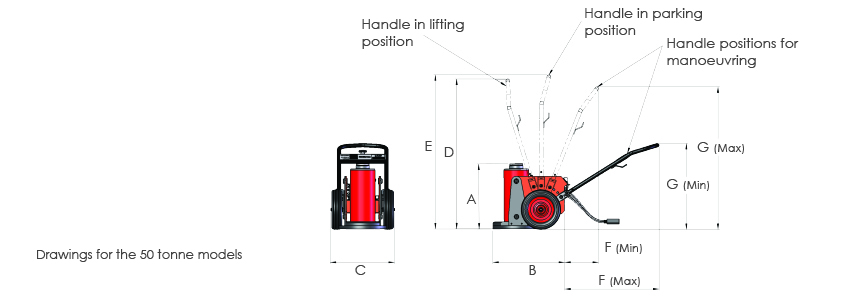

Model Number |
Dimensions in mm |
||||||
|
A |
B |
C |
D |
E min-max |
F min-max |
G min-max |
|
|
TL050A255 |
455 |
660 |
560 |
1440 |
1440 |
380-1000 |
700-1300 |
|
TL050E255 |
455 |
660 |
560 |
1440 |
1440 |
380-1000 |
700-1300 |
|
TLA10016 |
665 |
1130 |
652 |
831 |
356-854 |
465-1605 |
- |
|
TLA10021 |
843 |
1130 |
652 |
946 |
356-854 |
465-1605 |
- |
|
TLA15015 |
665 |
1130 |
652 |
835 |
356-854 |
465-1605 |
- |
|
TLA15020 |
843 |
1130 |
652 |
963 |
356-854 |
465-1605 |
- |
|
TLA20015 |
660 |
1130 |
652 |
830 |
356-854 |
465-1605 |
- |
|
TLA20027 |
964 |
1130 |
652 |
1085 |
356-854 |
465-1605 |
- |
